Enable the vShield driver in VMware tools

Ivo Beerens
Date : July 11, 2013
Categories : esxi ,vshield
Tags : esxi-2 ,vshield

One of the steps of a vShield Endpoint based deployment is to enable the vShield driver in VMware tools. The vShield driver is not enabled by default. This can be done manually or automatically for example in the golden image of a VDI desktop.

Here are the manually steps when the VMware tools already are installed:

In the vSphere client open a Console session
Select VM – Guest – Install/Upgrade VMware Tools

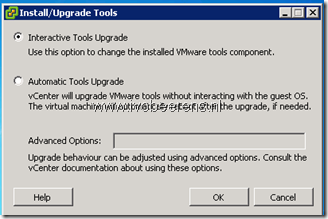

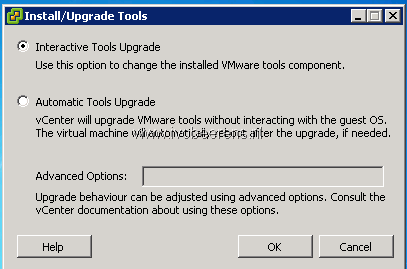

Choose Interactive Tools Upgrade

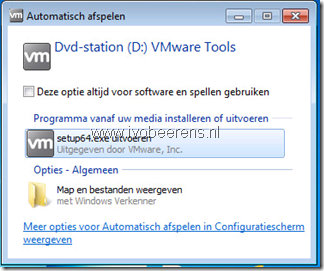

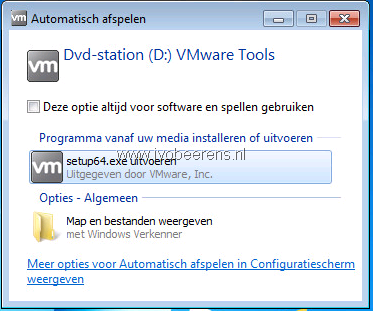

In the VM open the setup program

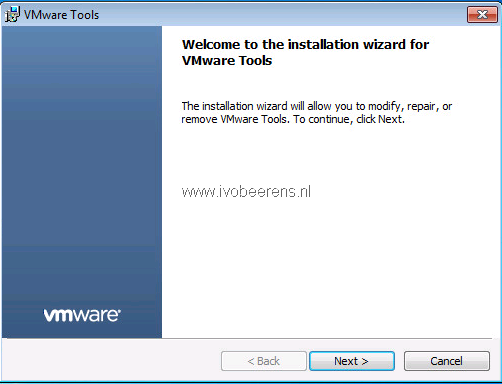

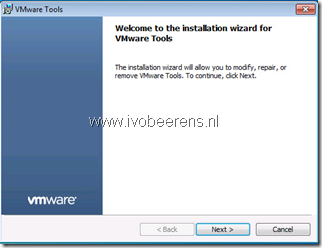

Choose Next

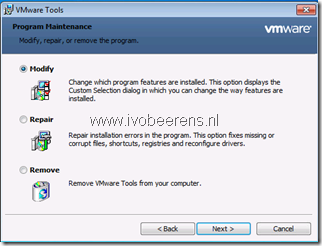

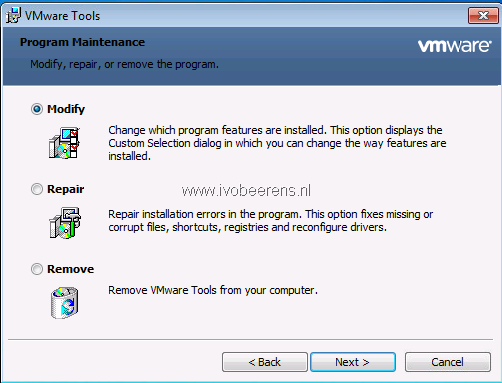

Choose Modify

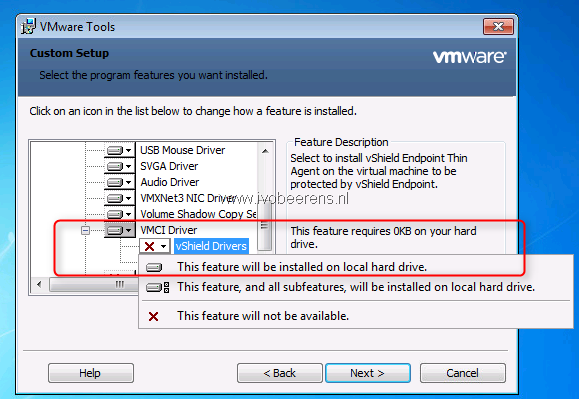

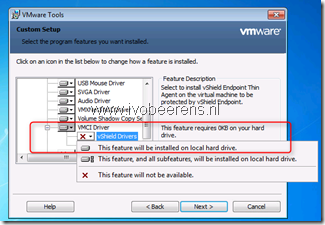

Expand the VMCI Driver section, select vShield Drivers and select “This feature will be installed on the local hard drive”

Next – modify

If you are installing VMware Tools in a number of Windows virtual machines, you can automate its installation by using the following syntax:

Mount/Extract the VMware Tools ISO

setup.exe /S /v /qn REBOOT=R ADDLOCAL=VMCI REMOVE=Hgfs

or choose Automatic Tools Upgrade

In the advanced Options field enter:

/v /qn ADDLOCAL=VMCI,VShield REMOVE=Hgfs
