Unable to login because of a ESXi root account lockout

Ivo Beerens
Date : January 2, 2018
Categories : vSphere
Tags : esxi-2 ,VMware

When starting one of my VMware ESXi 6.5 lab hosts I was unable to login using the vSphere Host Client. I tried to make an SSH session to the host but got an “Access Denied” message.

Using the Direct Console Interface (DCUI) I was able to login using the root account. In the log folder (under /var/log) I found that the root account is locked because of many failed attempt by investigate the following log files:

vobd.log

2018-01-02T10:57:00.003Z: [GenericCorrelator] 5612887277us: [vob.user.account.locked] Remote access for ESXi local user account 'root' has been locked for 900 seconds after 58 failed login attempts.
2018-01-02T10:57:00.003Z: [UserLevelCorrelator] 5612887277us: [vob.user.account.locked] Remote access for ESXi local user account 'root' has been locked for 900 seconds after 58 failed login attempts.
2018-01-02T10:57:00.003Z: [UserLevelCorrelator] 5612887502us: [esx.audit.account.locked] Remote access for ESXi local user account 'root' has been locked for 900 seconds after 58 failed login attempts

auth.log

2018-01-02T11:02:08Z sshd[117700]: Connection from 192.168.249.23 port 63449
2018-01-02T11:02:09Z sshd[117701]: pam_tally2(sshd:auth): user root (0) tally 72, deny 5
2018-01-02T11:02:14Z sshd[117700]: error: PAM: Authentication failure for root from 192.168.249.23
2018-01-02T11:02:14Z sshd[117710]: pam_tally2(sshd:auth): user root (0) tally 73, deny 5

By default the ESXi 6.x password requirements for lockout behavior are:

A maximum of ten failed attempts is allowed before the account is locked
Password lockout is active on SSH and the vSphere Web Service SDK
Password lockout is not active on the Direct Console Interface (DCUI) and the ESXi Shell

To view the number of failed login attempt use the following command:

pam_tally2 --user root

In my example the there were 58 failed root login attempts:

Login Failures Latest failure From root 58 01/02/18 10:56:59 unknown

The clear the the password lockout use the following command:

pam_tally2 --user root --reset

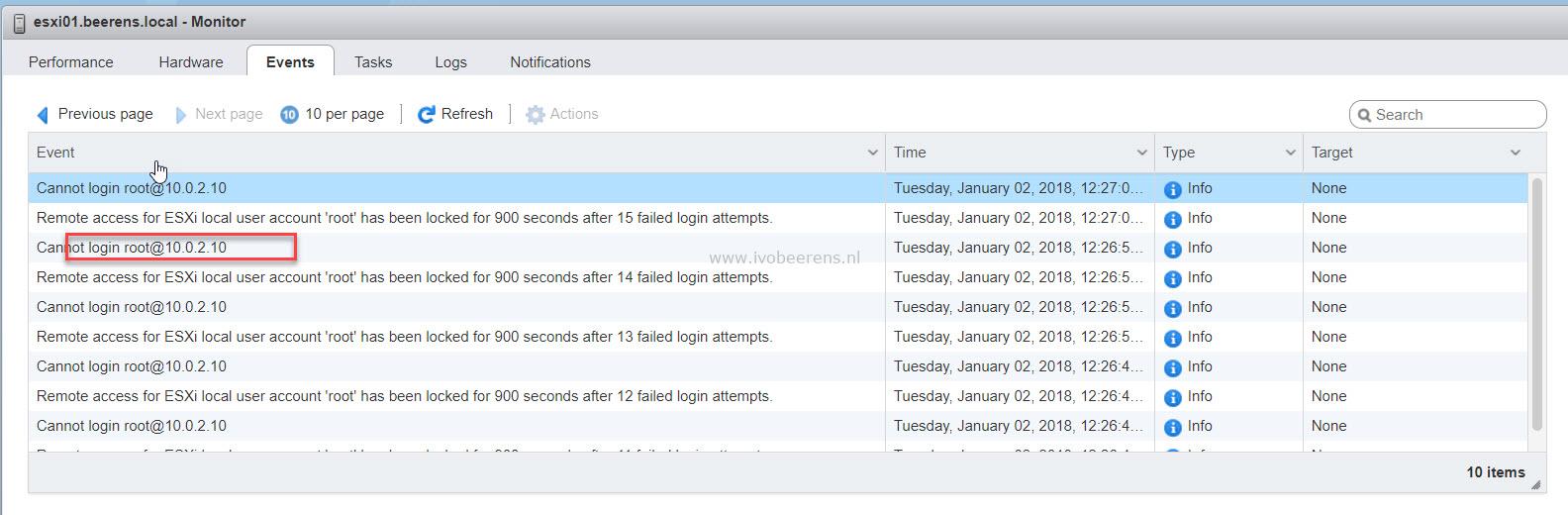

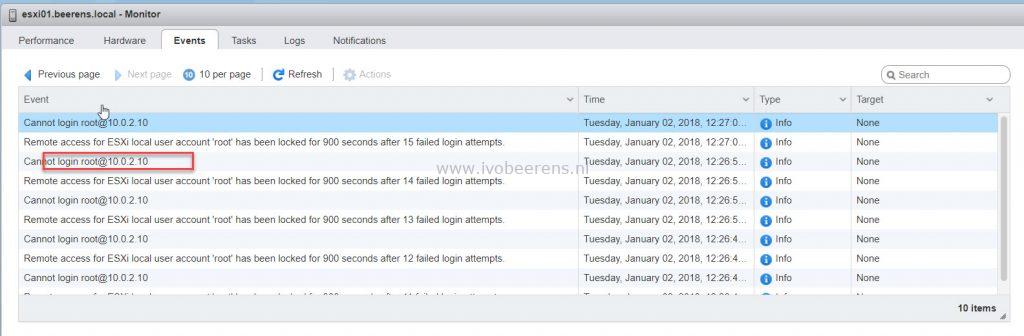

After this command I was able to login the vSphere Host Client. In the vSphere Host Client I found the VM that is causing the root account lockout:

The VM was monitoring the vSphere ESXi host with the wrong root password. After changing the password the account lockout problem was solved.
