Create a Windows Server 2025 Virtual Machine with Packer

Last week Windows Server 2025 became Generally Available (GA). To create a Windows Server 2025 image I use HashiCorp Packer.

What is Packer?

Packer is free and open-source software. It’s developed and maintained by HashiCorp. You can download it for free and use it without any licensing fees. Packer has the following capabilities:

  • Creates Machine Images: Packer builds machine images for various platforms (e.g., VMware, Hyper-V, AWS, Azure) from a single source configuration.
  • Configuration-Driven: Packer uses configuration files (typically in HCL format) to define the build process, including the source image, provisioning steps, and output formats.
  • Provisioning: Packer supports various provisioning methods to customize the image, such as shell scripts, Ansible playbooks, PowerShell scripts, and more.
  • Platform Agnostic: You can use the same configuration to build images for multiple platforms, ensuring consistency.
  • Automation: Packer automates the image building process, reducing manual effort and potential errors.
  • Version Control: Packer configurations can be version controlled, allowing for reproducible builds and easier collaboration.
  • Testing and Validation: You can integrate testing and validation steps into your Packer builds to ensure image quality.
  • Continuous Integration/Continuous Delivery (CI/CD): Packer can be integrated into CI/CD pipelines to automate image building as part of your software delivery process.

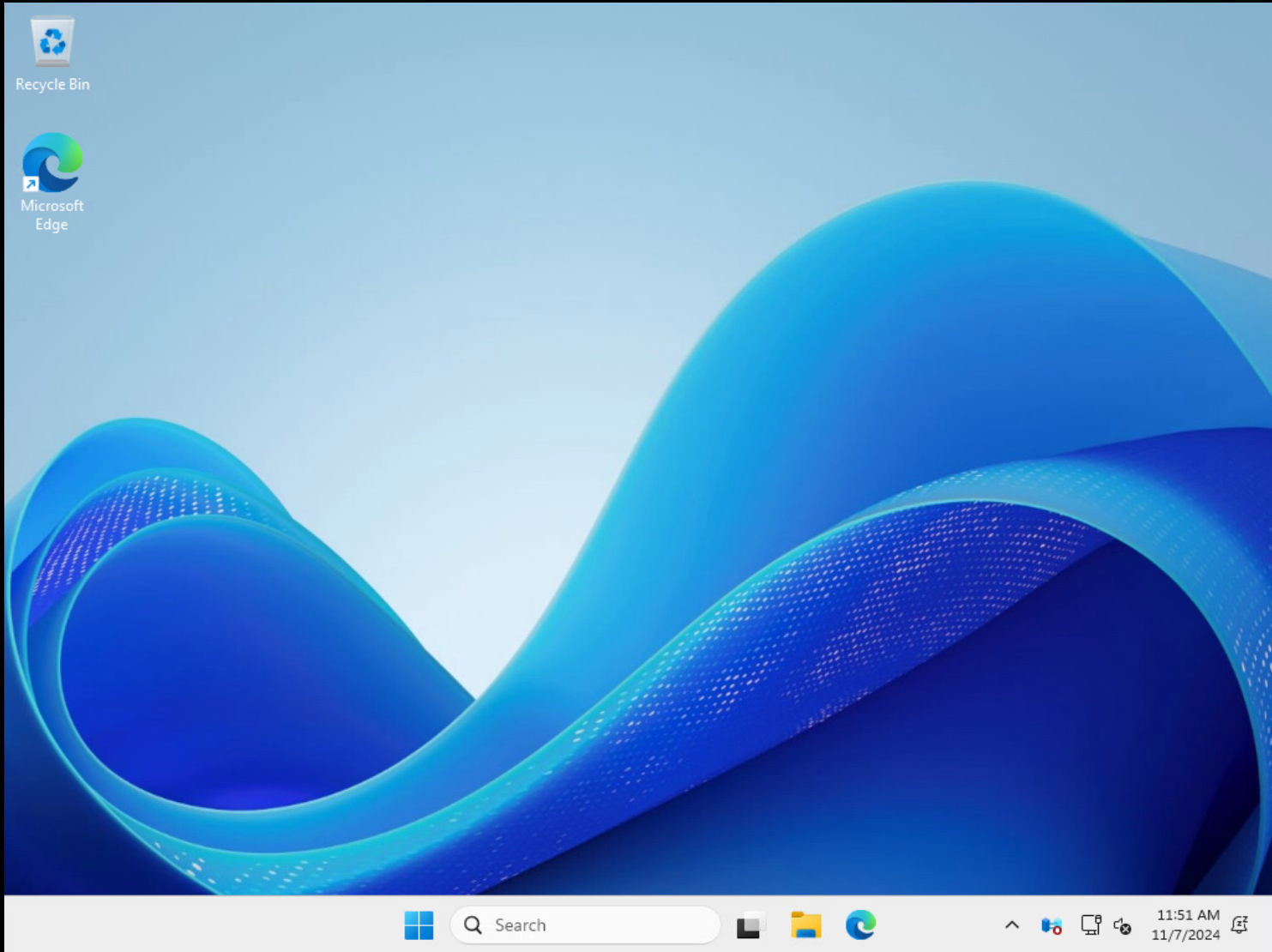

In this blog post, I show how to deploy Windows Server 2025 with Desktop Experience enabled running as VM within VMware ESXi 8.

windowsserver2025

Key Features:

  • Operating System: Microsoft Windows Server 2025 (64-bit)
  • Hardware:
    • vCPUs: 2
    • Memory: 4 GB
    • Disk: 100 GB (thin provisioned)
    • Virtualization-Based Security (VBS): Enabled
    • Network Adapter: VMXNET3

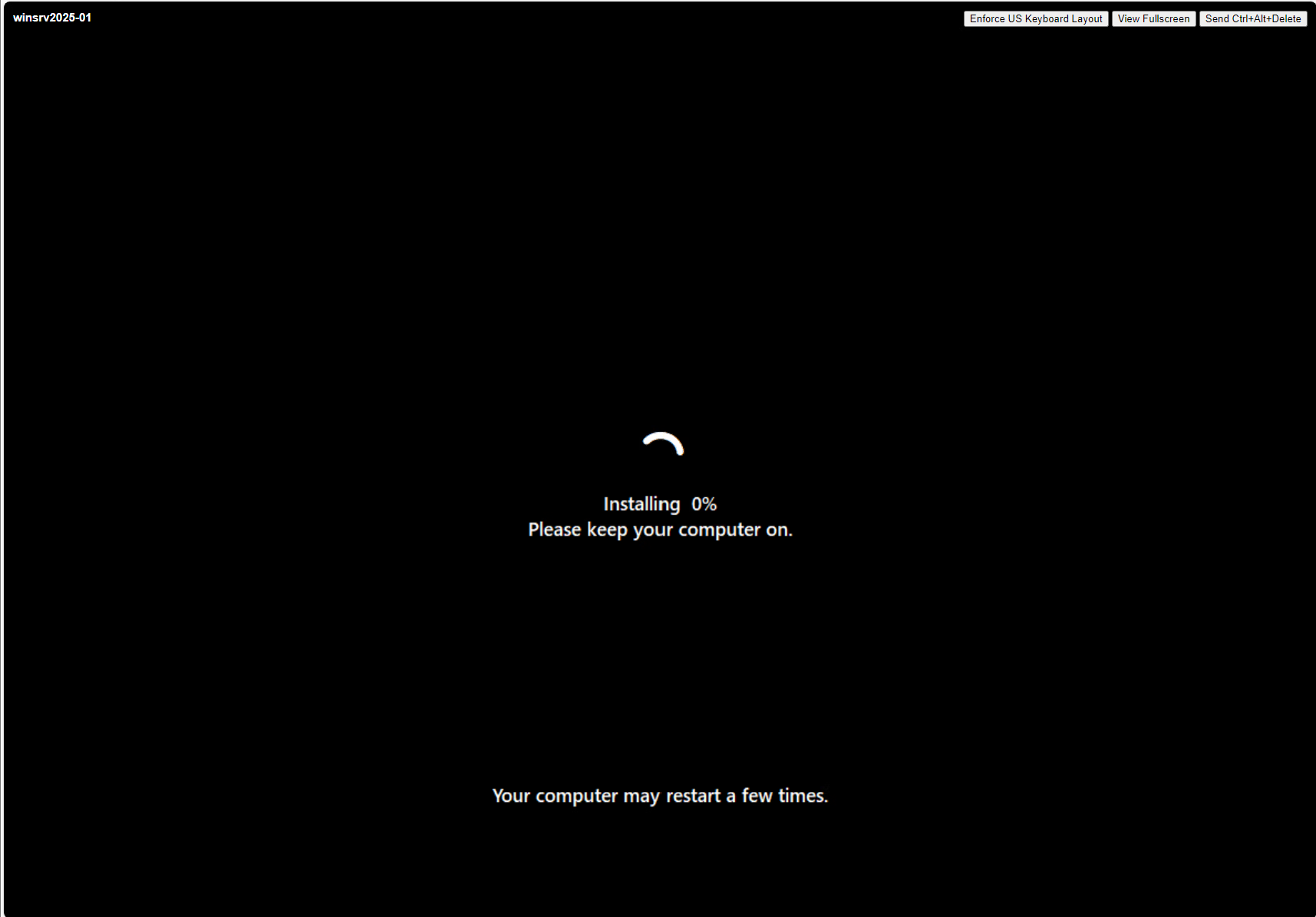

  • The latest Windows Updates are installed.

windowsserver2025

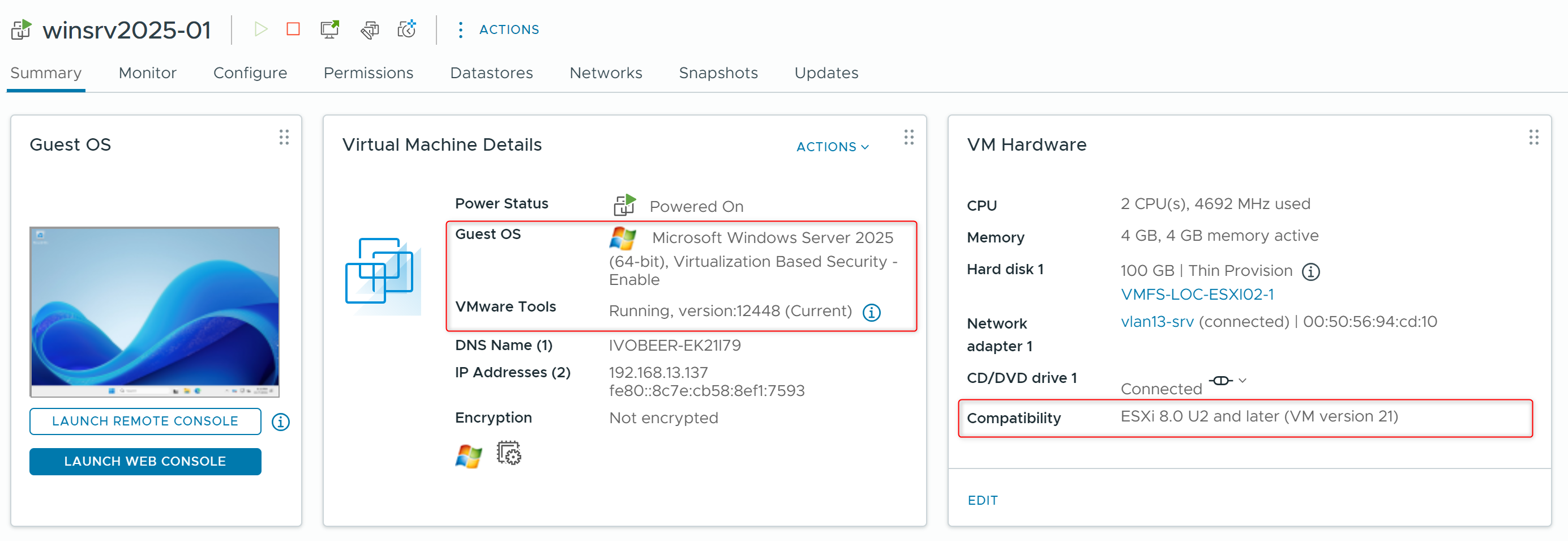

  • VMware Compatibility: Tested with VMware vSphere 8 (Hardware version 21)
  • The VMware PVSCSI (VMware Paravirtual) driver is included in the Windows Server 2025 ISO image, there is no need to select or install the PVSCSI driver from additional media now.
  • VMware Tools: Automatically installed (version 12.5.0 with day-zero support for Windows Server 2025)
  • Remote Access: OpenSSH (default in Windows Server 2025) used by Packer (instead of using WINRM).
  • Package Management: WinGet is fully supported for easy software installation and updates (e.g., Winget Upgrade -all)

windowsserver2025

Notes:

  • Refer to the hardware requirements for Windows Server 2025 for optimal performance: link
  • Adjust the variables file in (win2025-std.auto.pkvars.hcl) to customize the VM configuration according to your needs.
  • If Windows Server 2025 (64-bit) is unavailable (depends on the VMware ESXi version) use Microsoft Windows Server 2022 (64-bit) as Guest OS. This can be checked using the following script link

Configuration

  1. Download the latest Packer binary. link
  2. Adjust the variables in the win2025-std.auto.pkvars.hcl file
  3. Adjust the passwords in the autounattended.xml (lines 138 and 177)
  4. Adjust the passwords in locals in the win2025-std.config.pkr.hcl. Make sure the SSHUser and SSHPass match the username and password in the autounattended.xml file.
  5. The KMS keys for Windows Server 2025 can be found here: link
  6. Adjust the variables and run the commands in the build.ps1 file

Find the Packer configuration for Windows Server 2025 in my GitHub repo link
